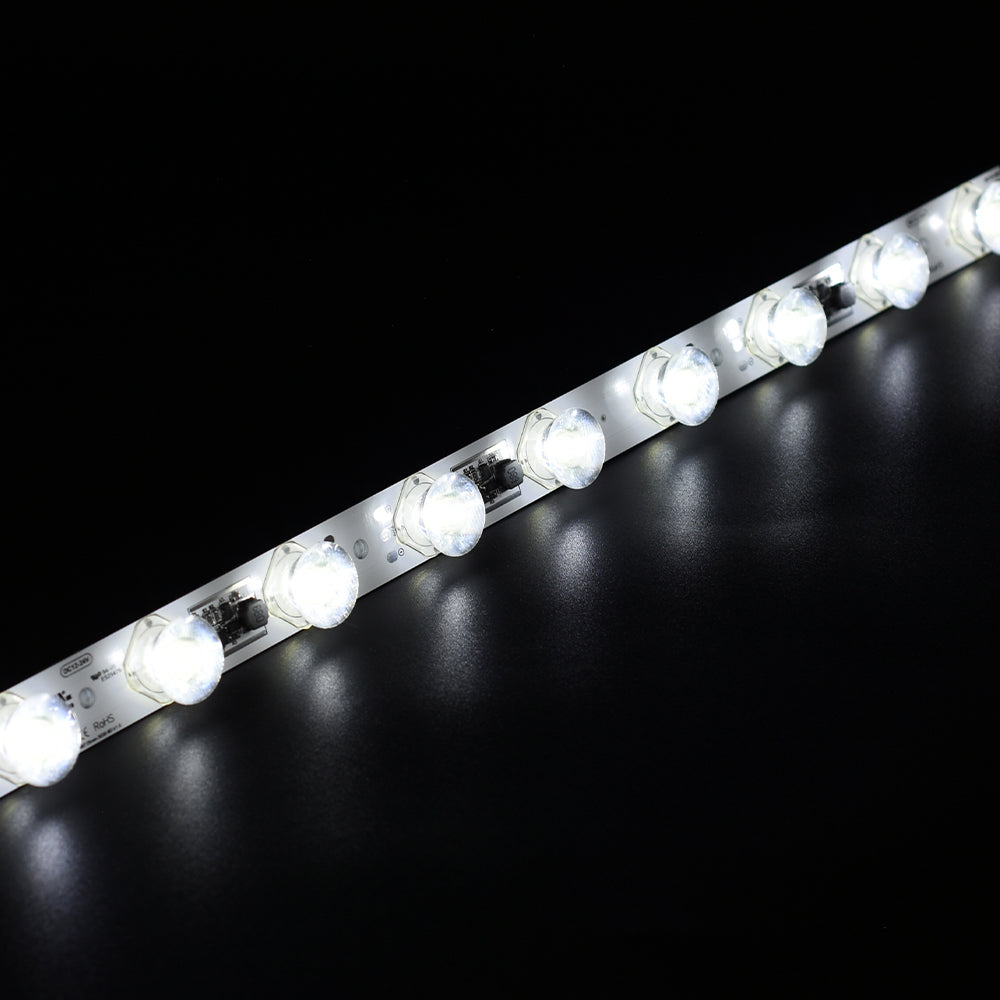

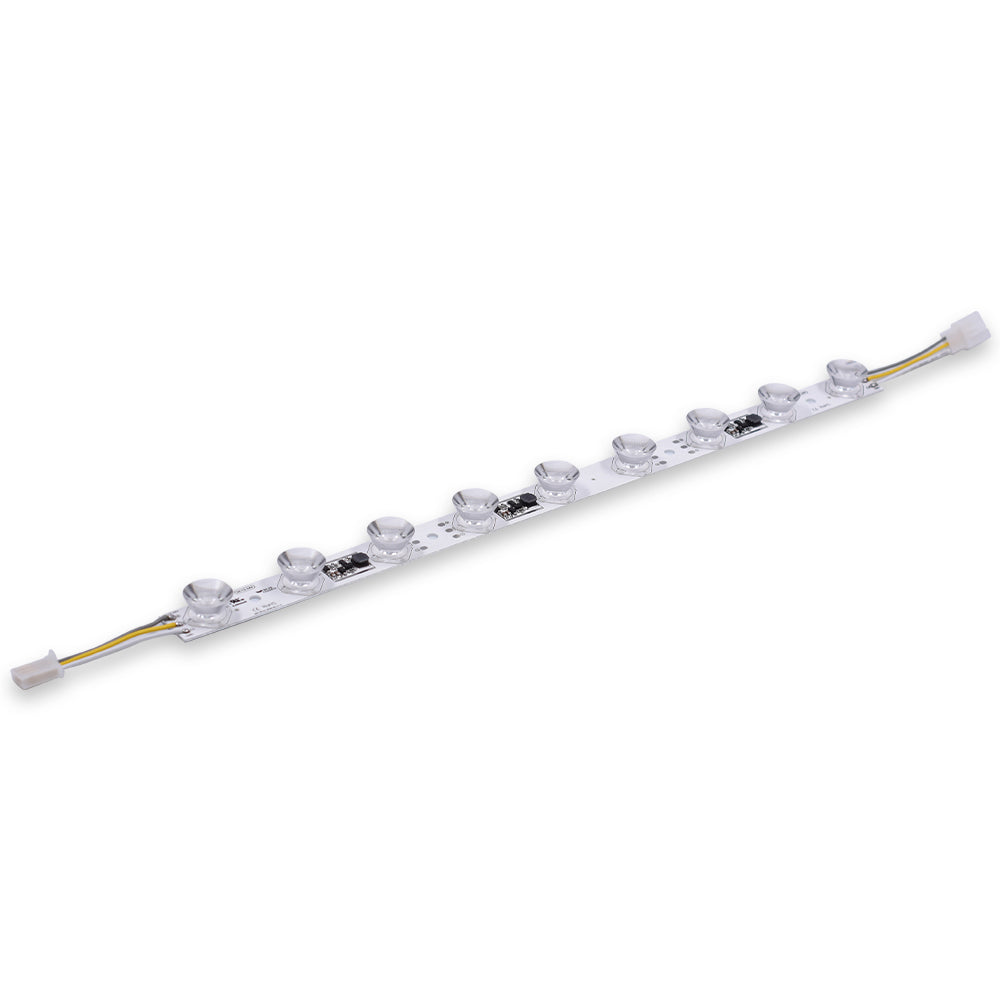

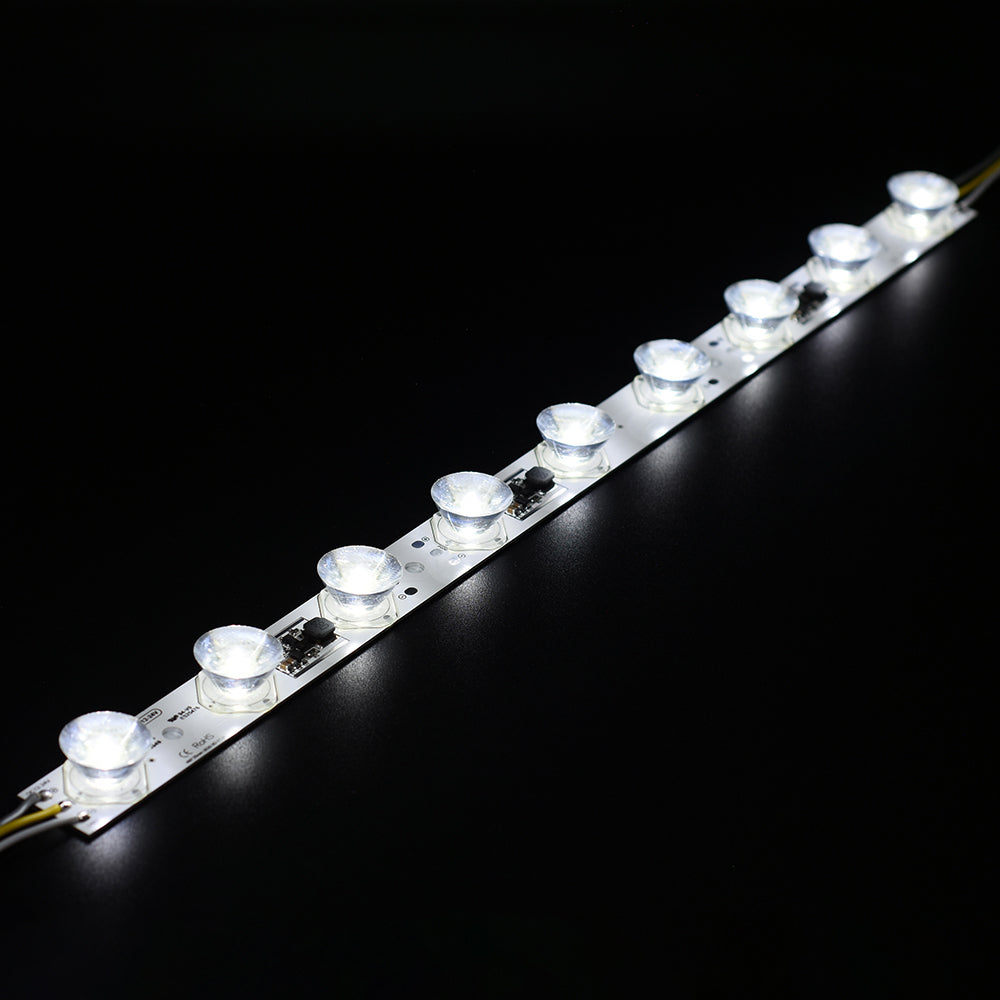

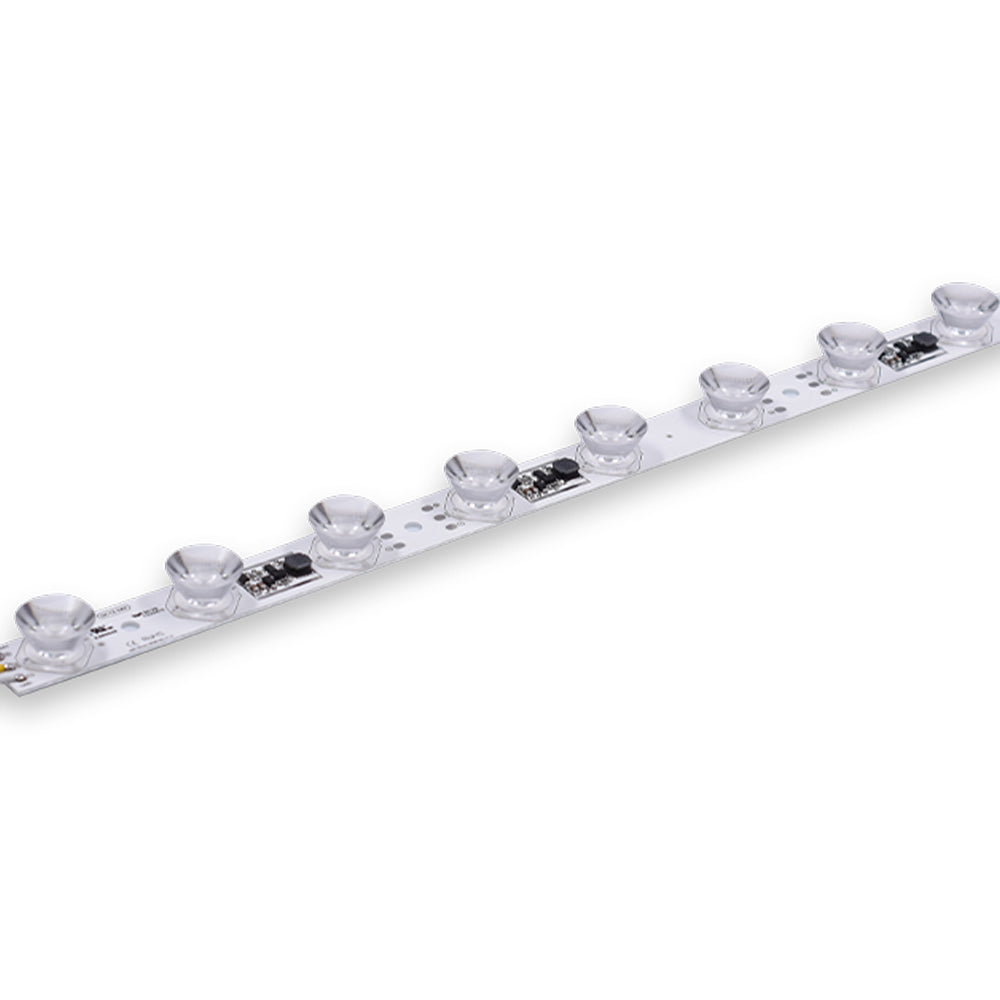

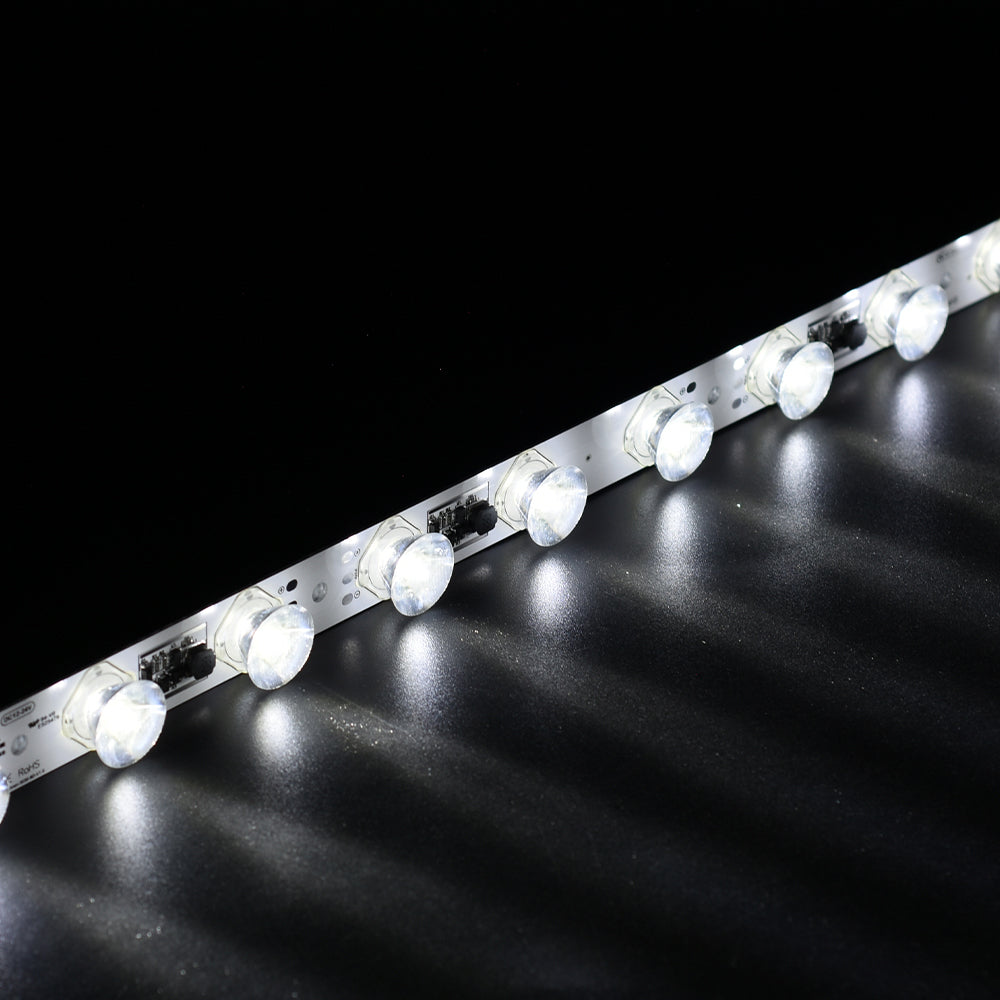

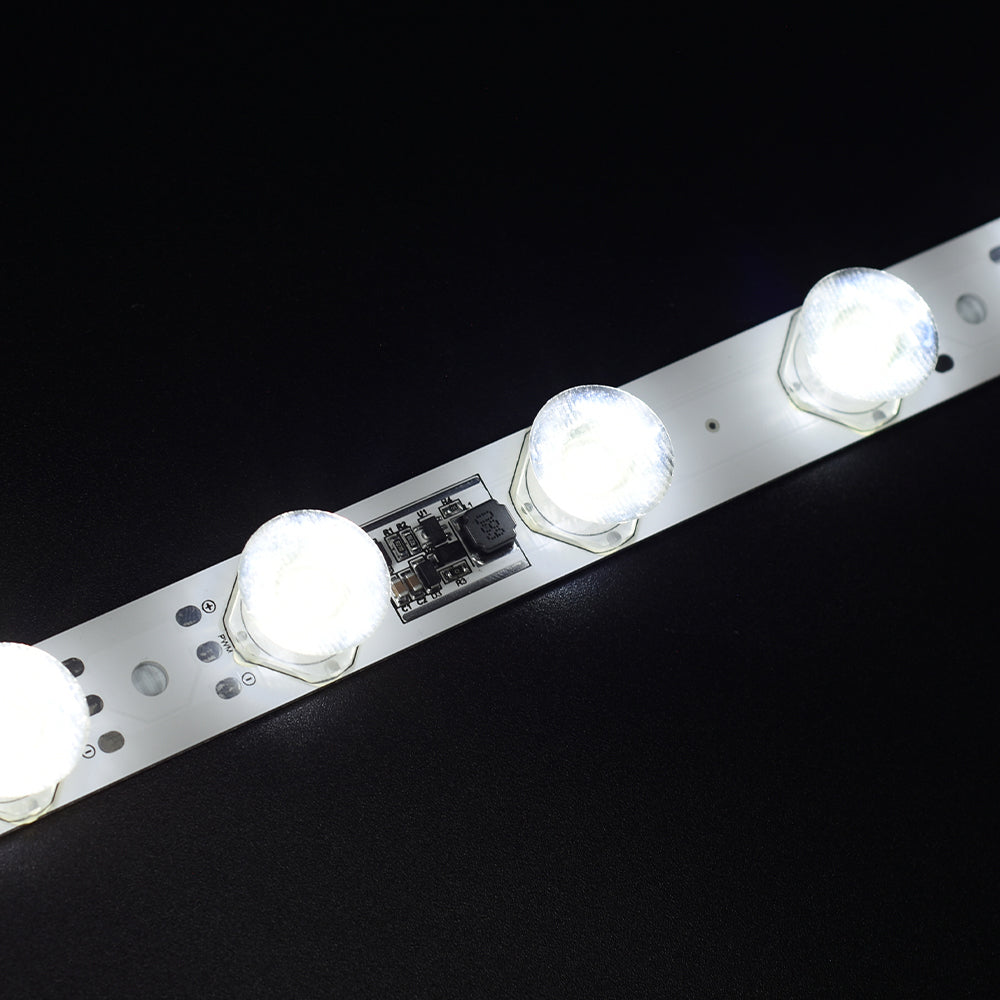

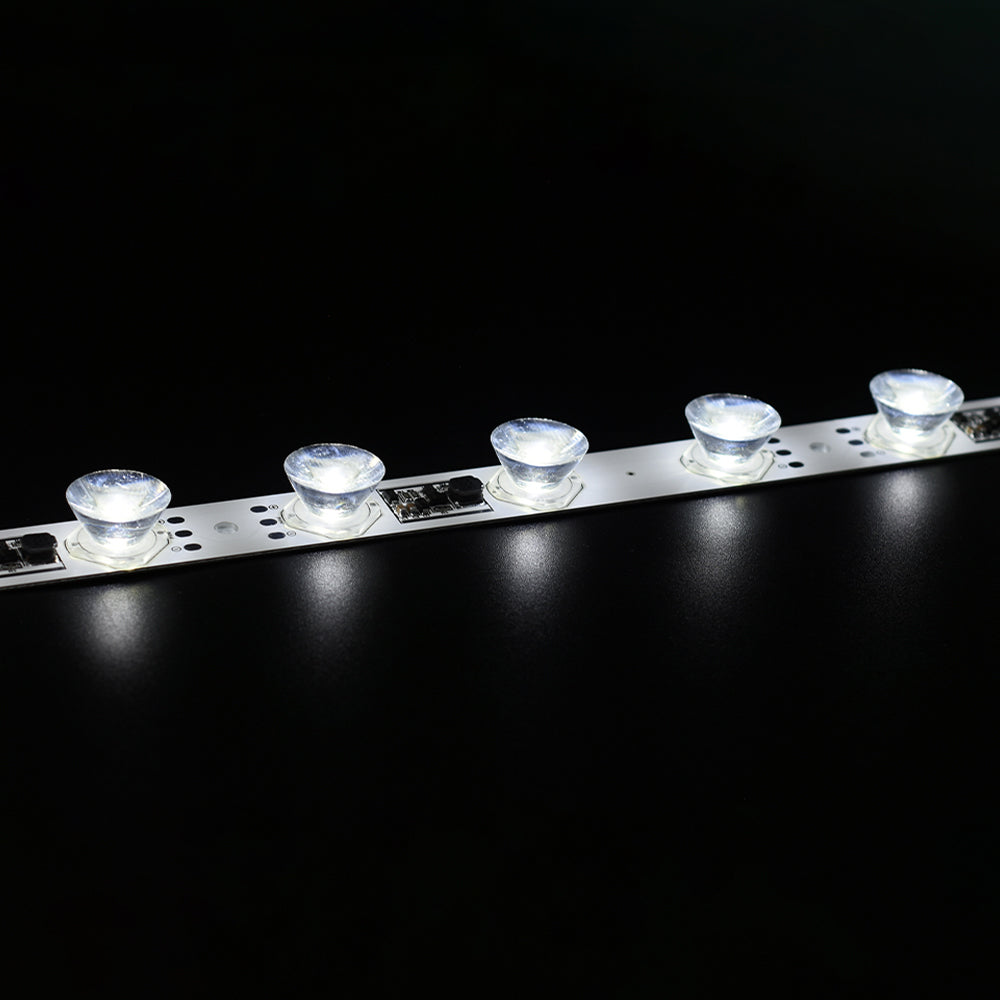

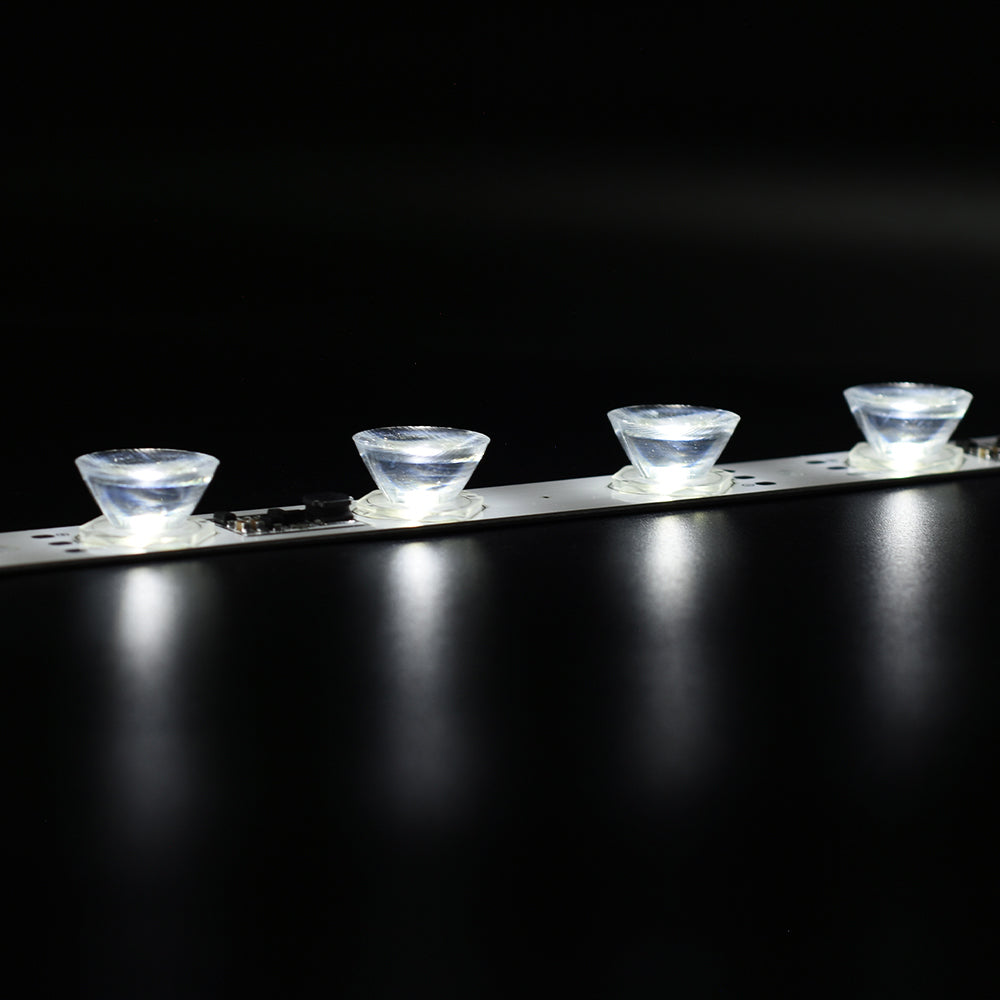

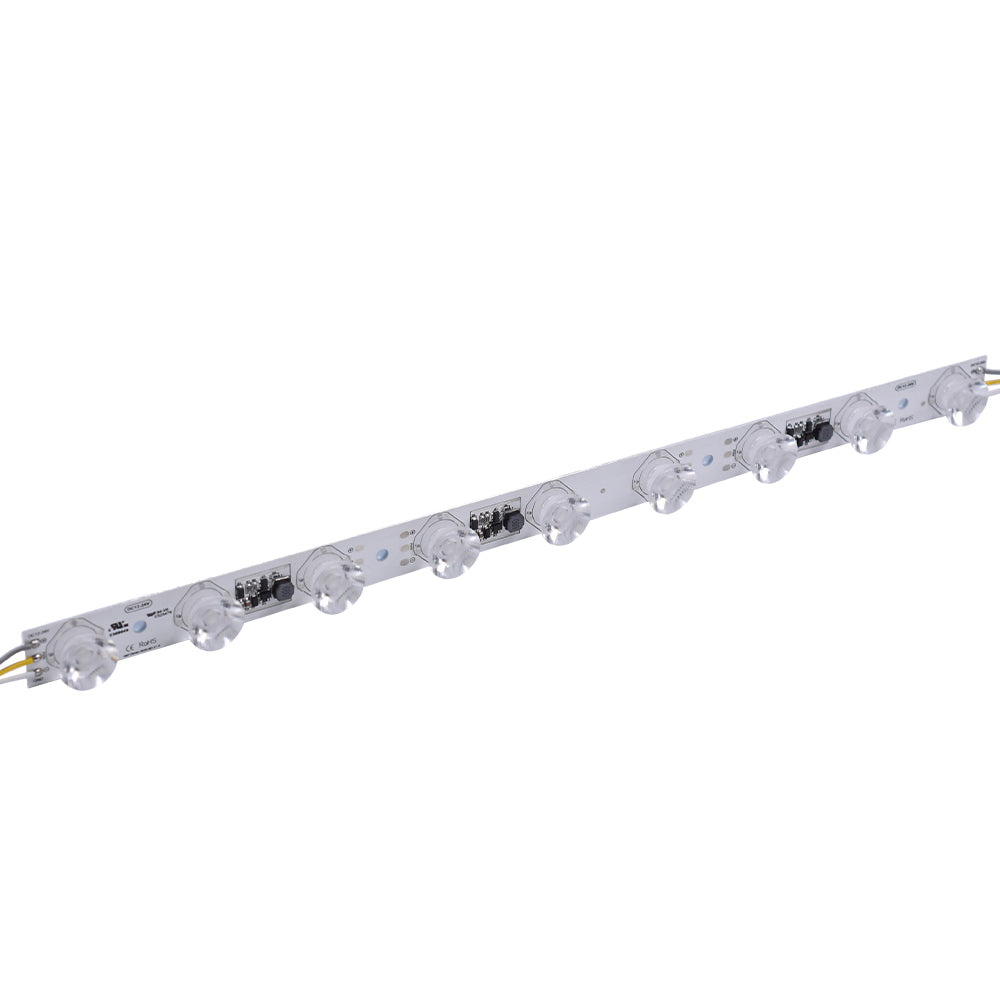

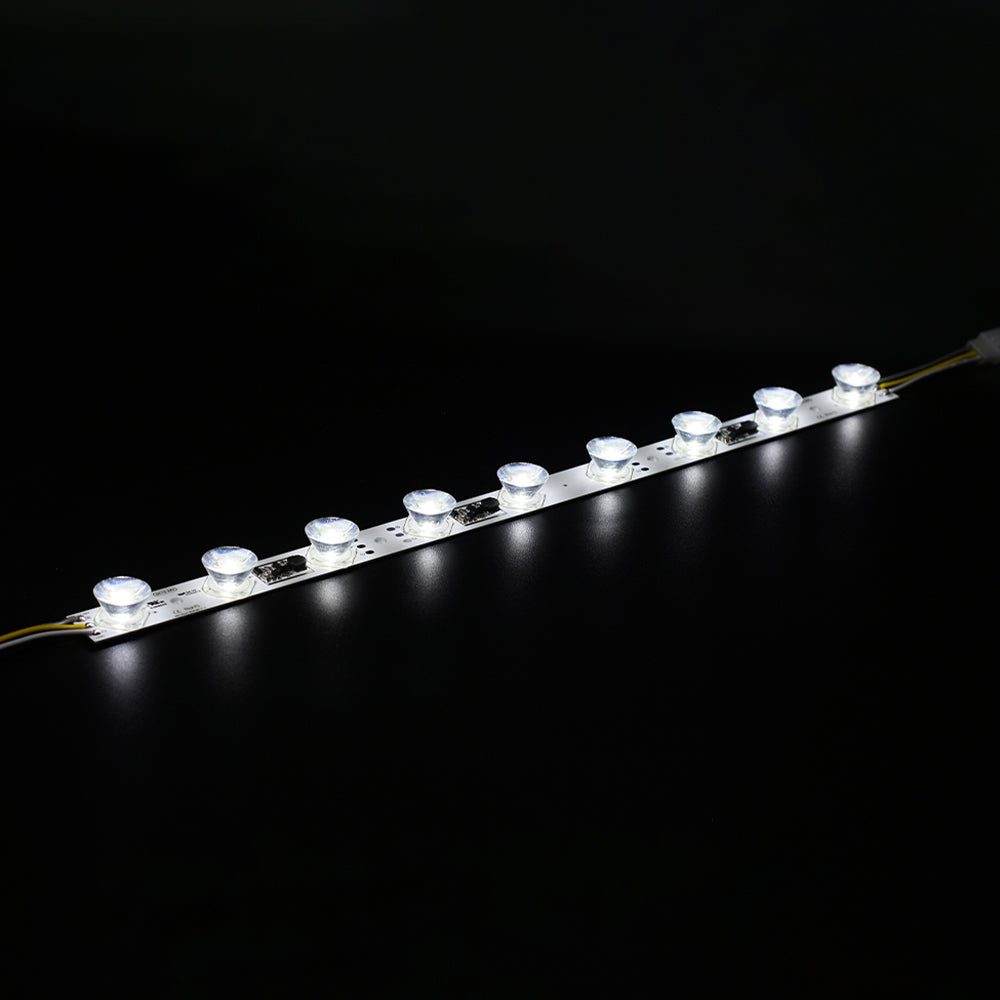

Non-waterproof LED Edgelit Bar - ADS-N3030-9W

The ADS-N3030-9W is a compact PWM-controlled edge-light LED bar designed for long-distance illumination up to 3 meters. With a narrow beam angle and high brightness, it is ideal for precision lighting in slim signage and display applications.

Technical Specifications:

• LED Type: SMD3030, 9 LEDs / 460 mm
• Input Voltage: DC12–24V
• Power Consumption: 22.5W
• Luminous Flux: 2407 lm
• Color Temperature: 6500K (Cool White)
• Beam Angle: 8° × 10°
• Lighting Distance: 3 m
• Dimmable: Yes (PWM)
• IP Rating: IP20 (Non-waterproof)
• Dimensions: 460 × 25 × 1.6 mm
