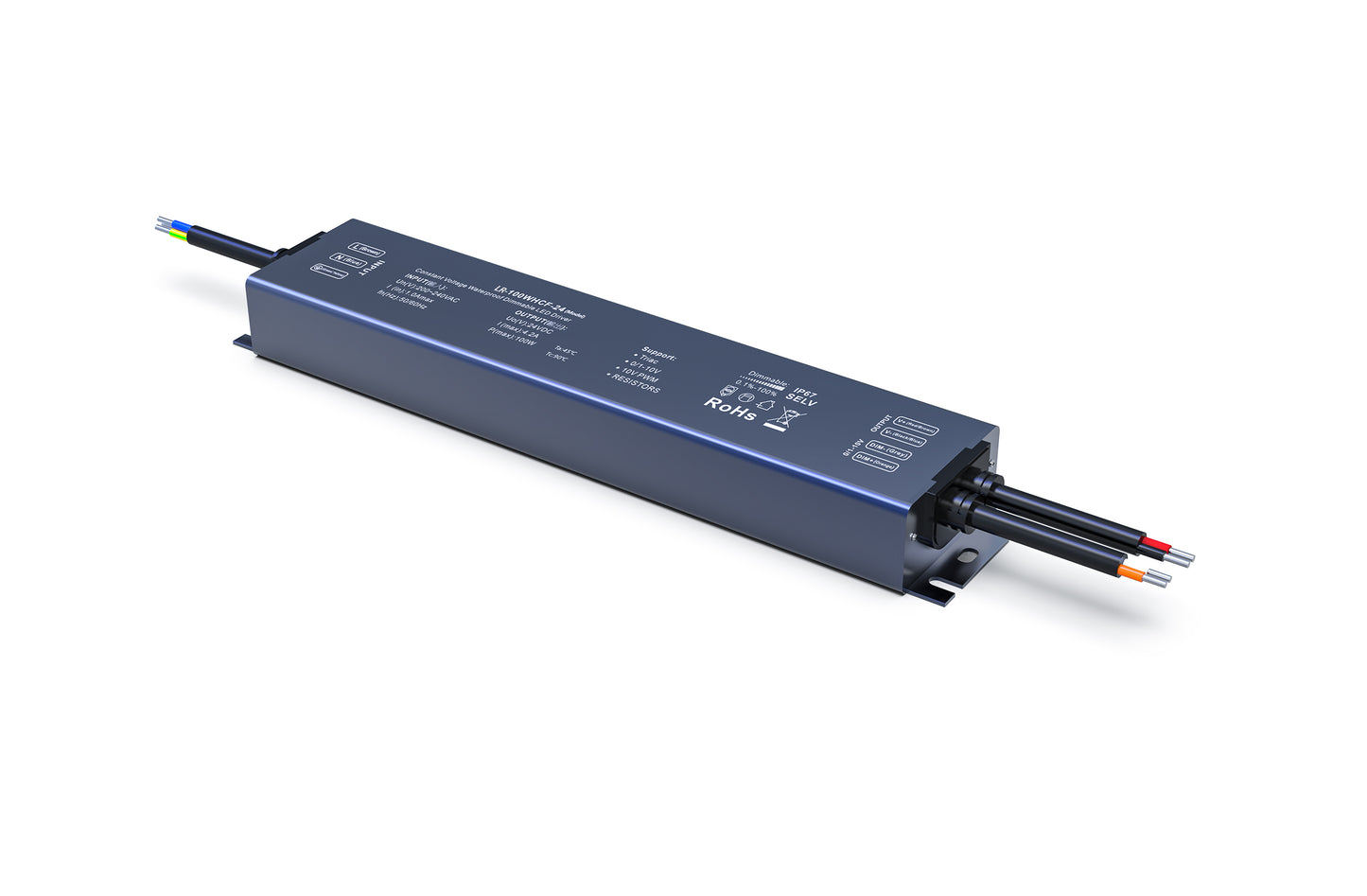

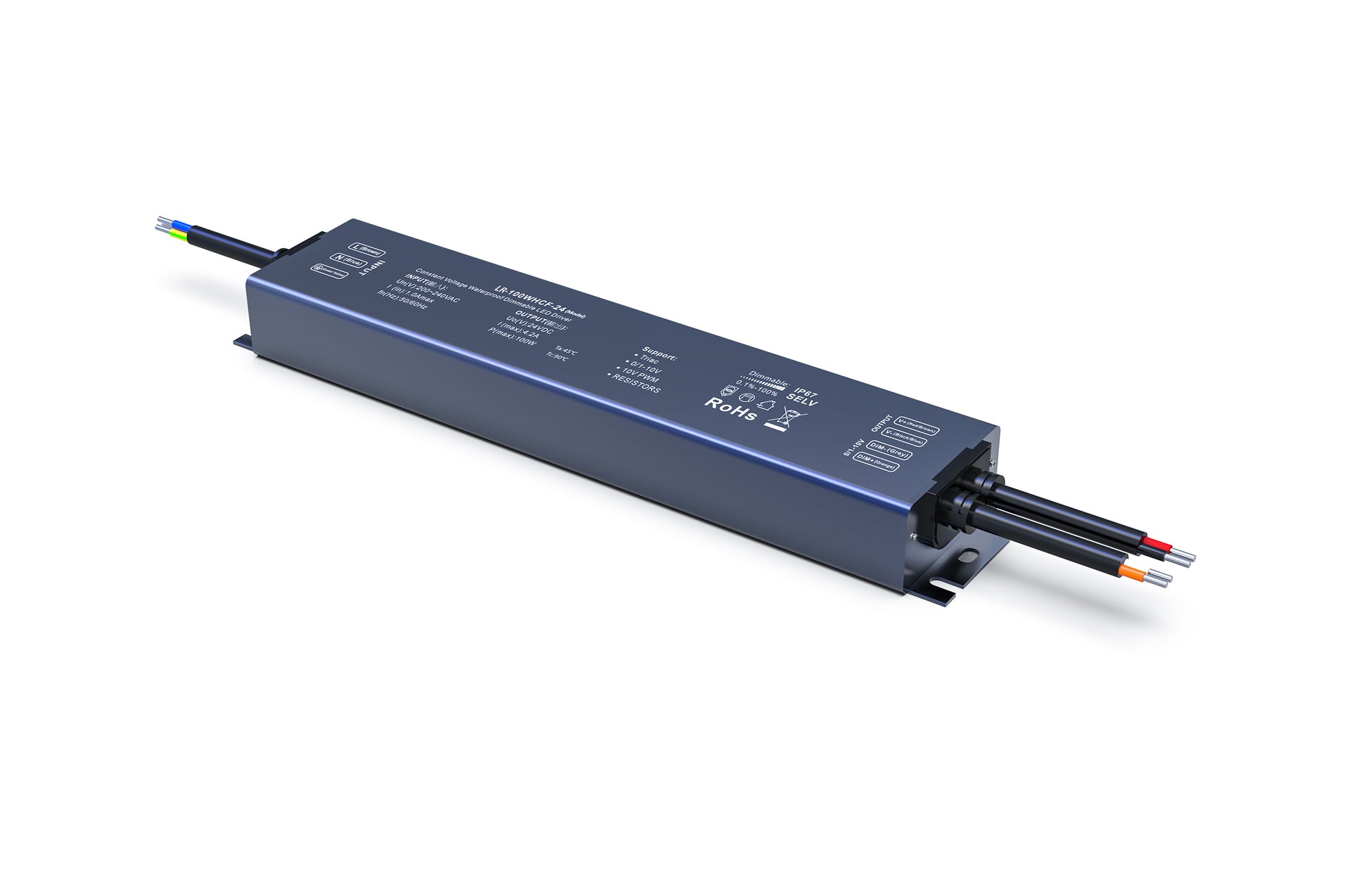

LR-100WHCF 12V

The LR-100WHCF series are high-efficiency 100W constant-voltage LED drivers with 5-in-1 dimming capability, designed for indoor and outdoor LED lighting applications. They support TRIAC, 0–10V, 1–10V, 10V PWM, and resistance dimming, delivering smooth, flicker-free dimming from 0–100% with ultra-low dimming depth. The drivers feature comprehensive protections, wide AC input range, IP67 housing, and long service life, making them suitable for professional and architectural lighting installations.

⚠️ It is recommended to keep ~20% margin to avoid running the power supply at 100% permanently (which wears it out prematurely).

Technical features:

• Output type: Constant Voltage (CV)
• Output voltage: 12VDC (±3%) / 24VDC (±2%)
• Maximum output power: 100W
• Output power range: 0–100W
• Maximum output current: 8.3A / 4.17A
• Typical efficiency: 88%
• Dimming range: 0–100% (dimming depth max. 0.1%)
• LED start level: 0.1% possible
• Flicker performance: Flicker-free, no strobe

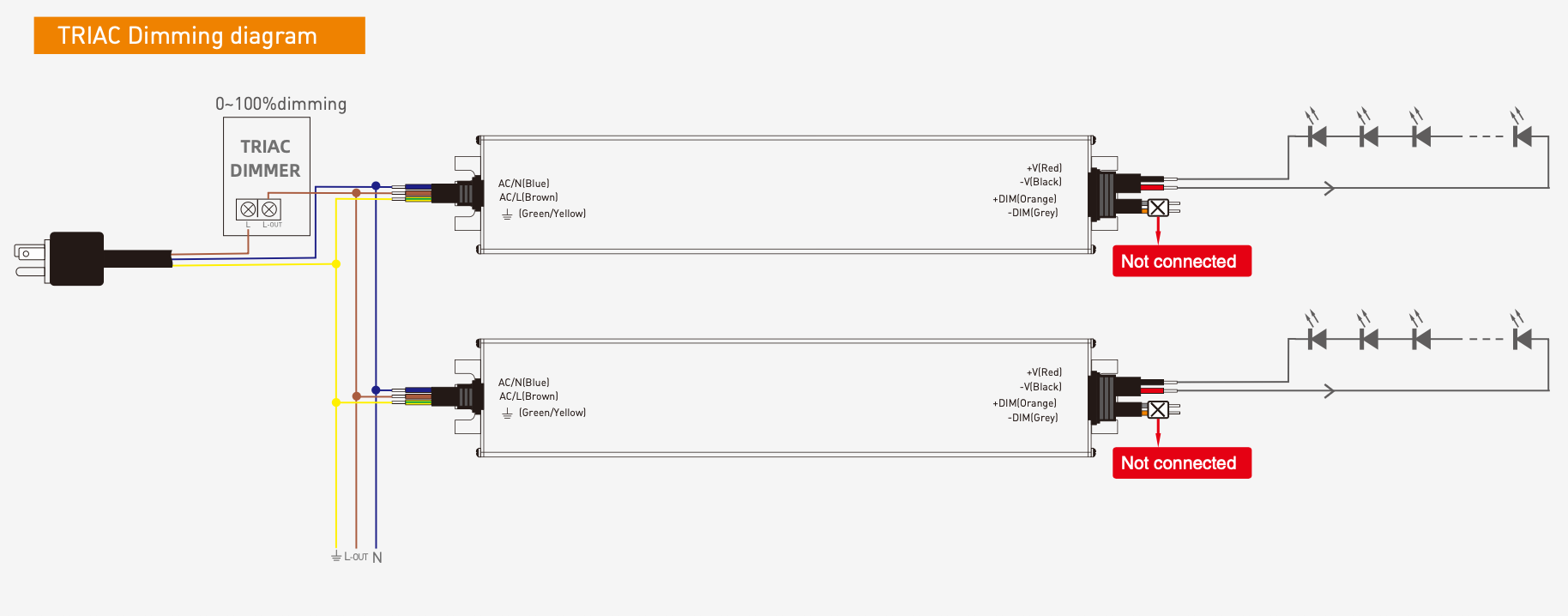

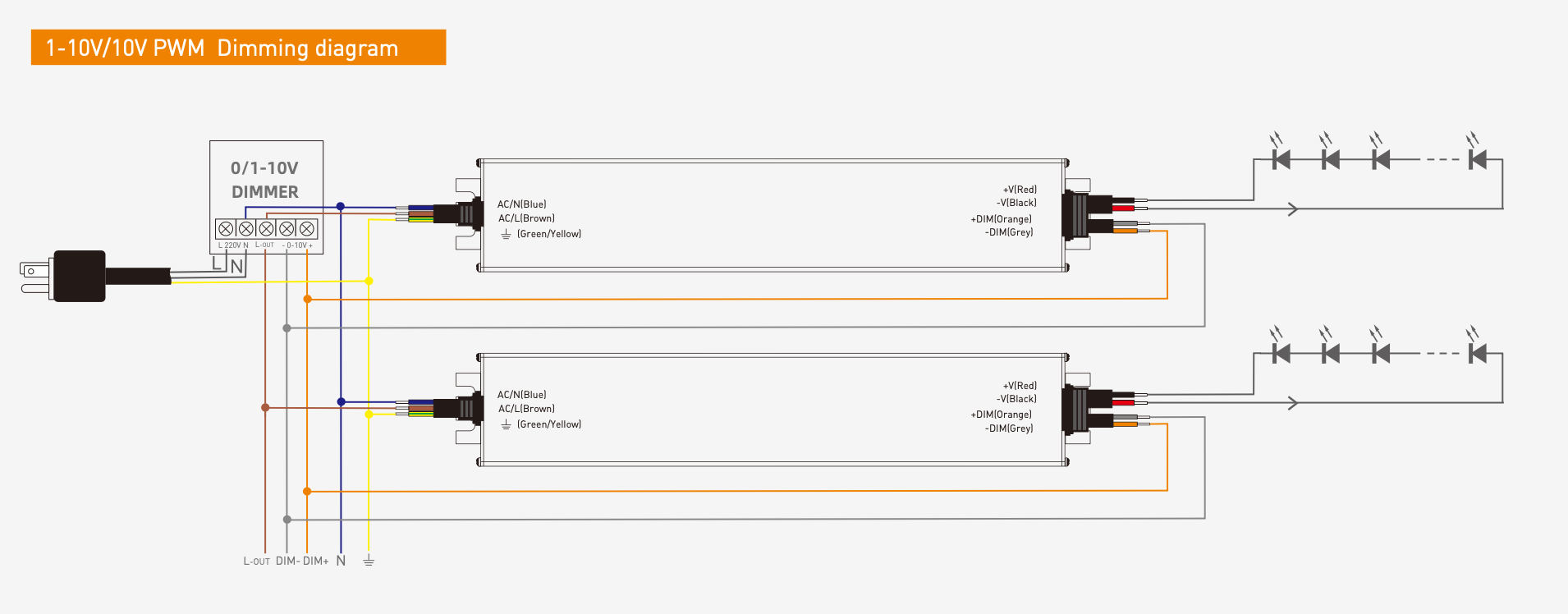

• Dimming methods (5-in-1): TRIAC / 0–10V / 1–10V / 10V PWM / Resistance dimming
• Input voltage: 176–264VAC
• Input frequency: 50Hz
• Input current (max.): 1.2A
• Power factor: >0.55 @230VAC (full load)
• PWM frequency: 700Hz–16kHz
• Inrush current (cold start): 60A @230VAC
• Protections: Overload, over-temperature, short circuit, over-voltage, auto recovery
• Overload behavior: Auto recovery / Shutdown when load ≥120%, auto recovery
• Short-circuit protection: Auto recovery / Two-level (auto recovery or power reset)
• Over-voltage shutdown (non-load): 13.5–18V / 27–35V
• Working temperature: ta -40°C to 45°C, tc 90°C
• Working humidity: 20–95% RH, non-condensing
• Storage temperature & humidity: -40°C to 80°C, 10–95% RH
• IP rating: IP67
• Safety standards: IEC/EN61347-1, IEC/EN61347-2-13
• EMC emission: EN55015, EN61000-3-2 Class C, IEC61000-3-3
• EMC immunity: EN61000-4-2/3/4/5/6/8/11, EN61547
• Strobe test standard: IEEE 1789

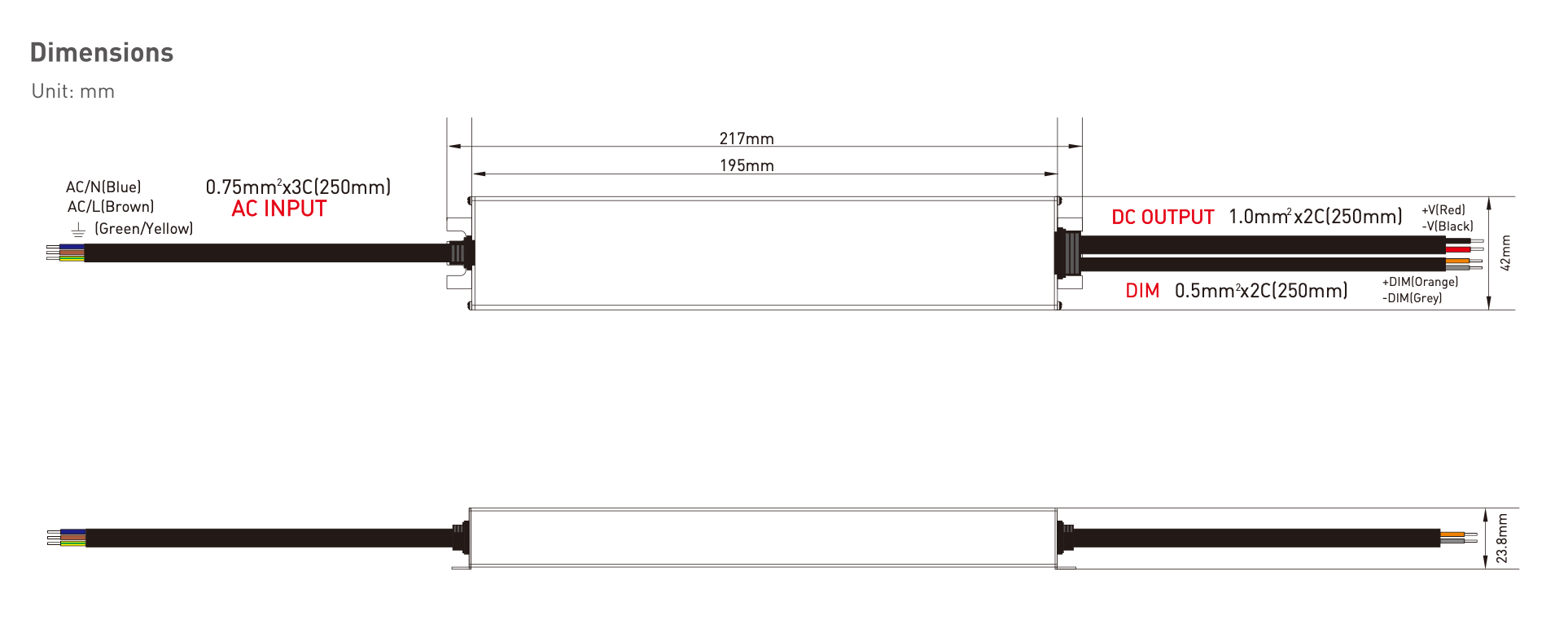

• Dimensions (L×W×H): 217 × 42 × 23.8 mm
• Weight: approx. 310 g
